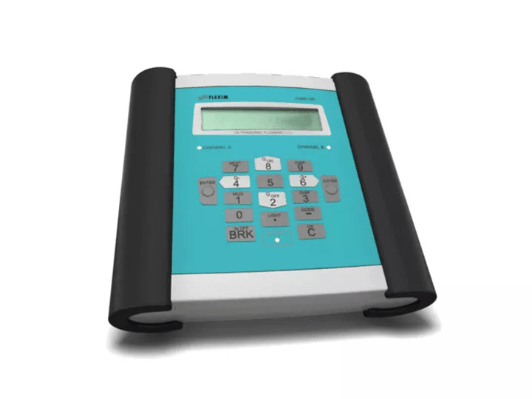

Fluxus F601 Portable Flow Meter

  • portable flow meter

Ultrasonic Clamp-On Flow Meter

The FLUXUS F601 is the portable clamp-on flow meter of choice for servicing and maintenance activities, the control and auditing of measurement points not covered by permanent meters, or even the temporary replacement of permanently installed flow meters.

The FLUXUS F601 portable ultrasonic flow meter is measurement-ready in less than 5 minutes, including the measurement of the pipe wall thickness, the connection of the transducers to the transmitter, the setup of the flow meter, and finally the mounting of the transducers.

Though featuring an ergonomic design, which offers simple handling and maximum ease of use, the F601 handheld ultrasonic flow meter was designed to easily withstand rough industrial environments. Besides its sturdy housing, the F601 portable flow meter features stable and precise latching transducer connectors and stainless steel armored cables to prevent damage during daily work.

With its Li-Ion battery, the F601 allows for up to 14 hours of autonomous measurement. Matched and paired transducers as well as sophisticated algorithms correct for pipe wall echoes and wrong transducer positioning, thus ensuring reliable and highly accurate measurements – even under the most demanding application conditions. Due to the new HybridTrek mode, the portable ultrasonic liquid flow meter can also reliably and accurately measure liquid flow under conditions with a high fraction of solid particles or gaseous loads.

The FLUXUS F601 portable clamp-on flow meter is also available in “Energy” and “Multifunctional” versions, allowing the measurement of thermal energy / BTU flows and making the flow meter the ideal companion for the analysis or auditing of heating and chiller plants. The collected data can be used to perform a complete energy balance or to assist during process monitoring and optimization.
